Custom Enrichments

In addition to built-in sources, custom enrichments allow you to create your own integrations with external APIs and threat intelligence feeds. Write TypeScript code that runs in a secure Deno sandbox to fetch, transform, and store enrichment data.

Overview

Custom enrichments support two modes:

Creating a Custom Enrichment

This walkthrough uses blocklist.de (a free IP blocklist) as a real-world example.

Open the Marketplace and start the wizard

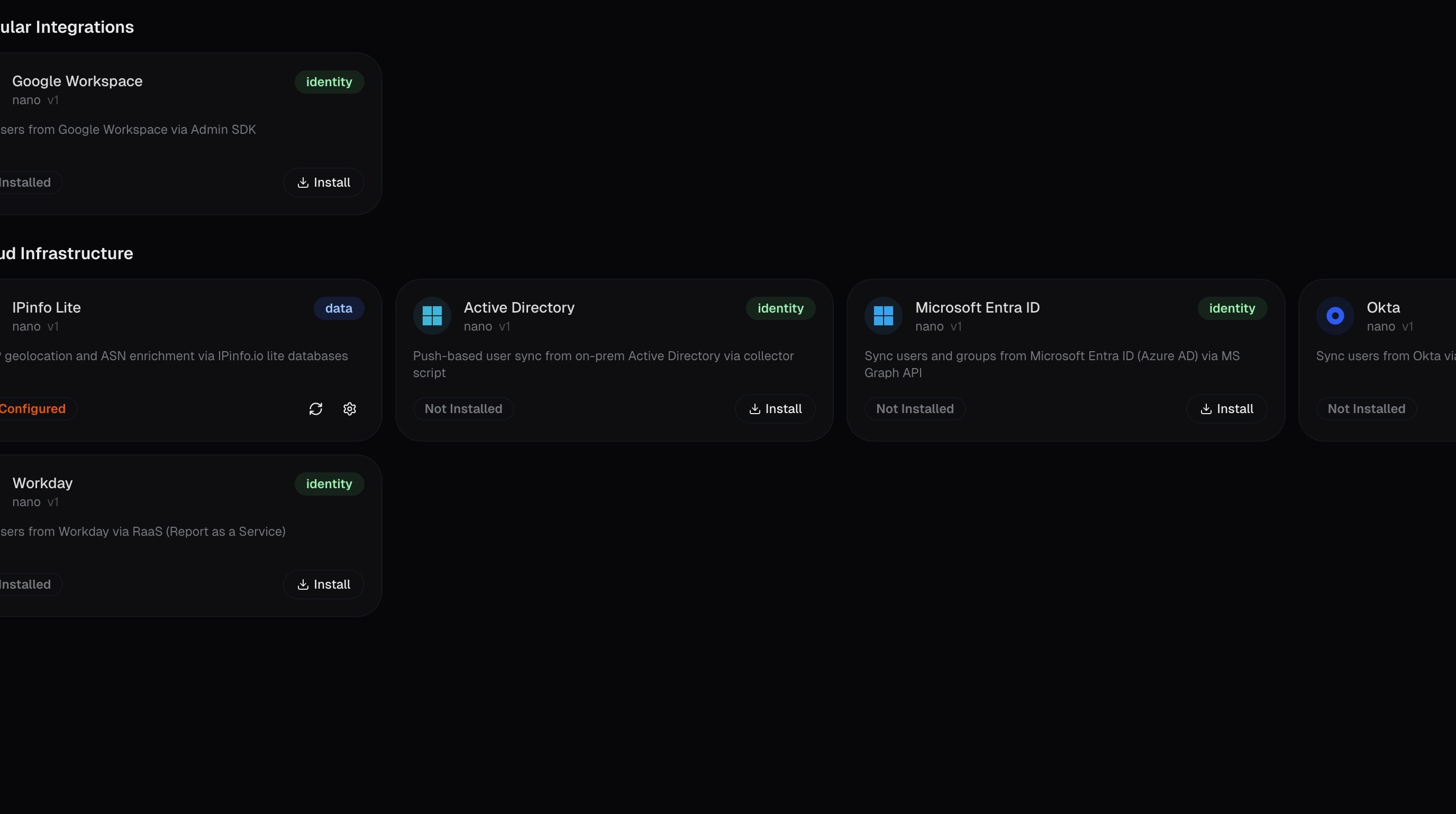

Navigate to Marketplace in the left sidebar:

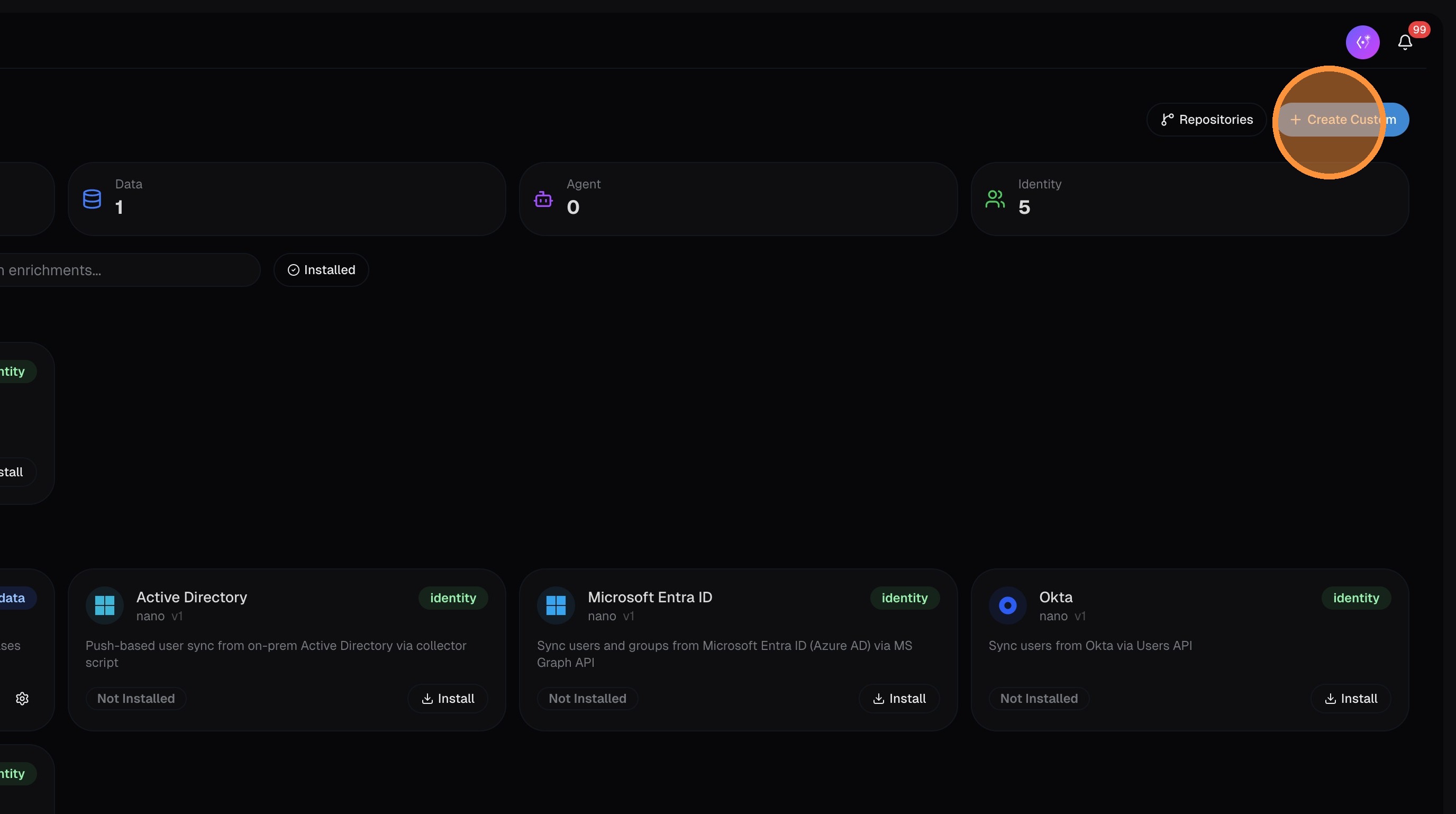

Click Create Custom:

Choose enrichment type

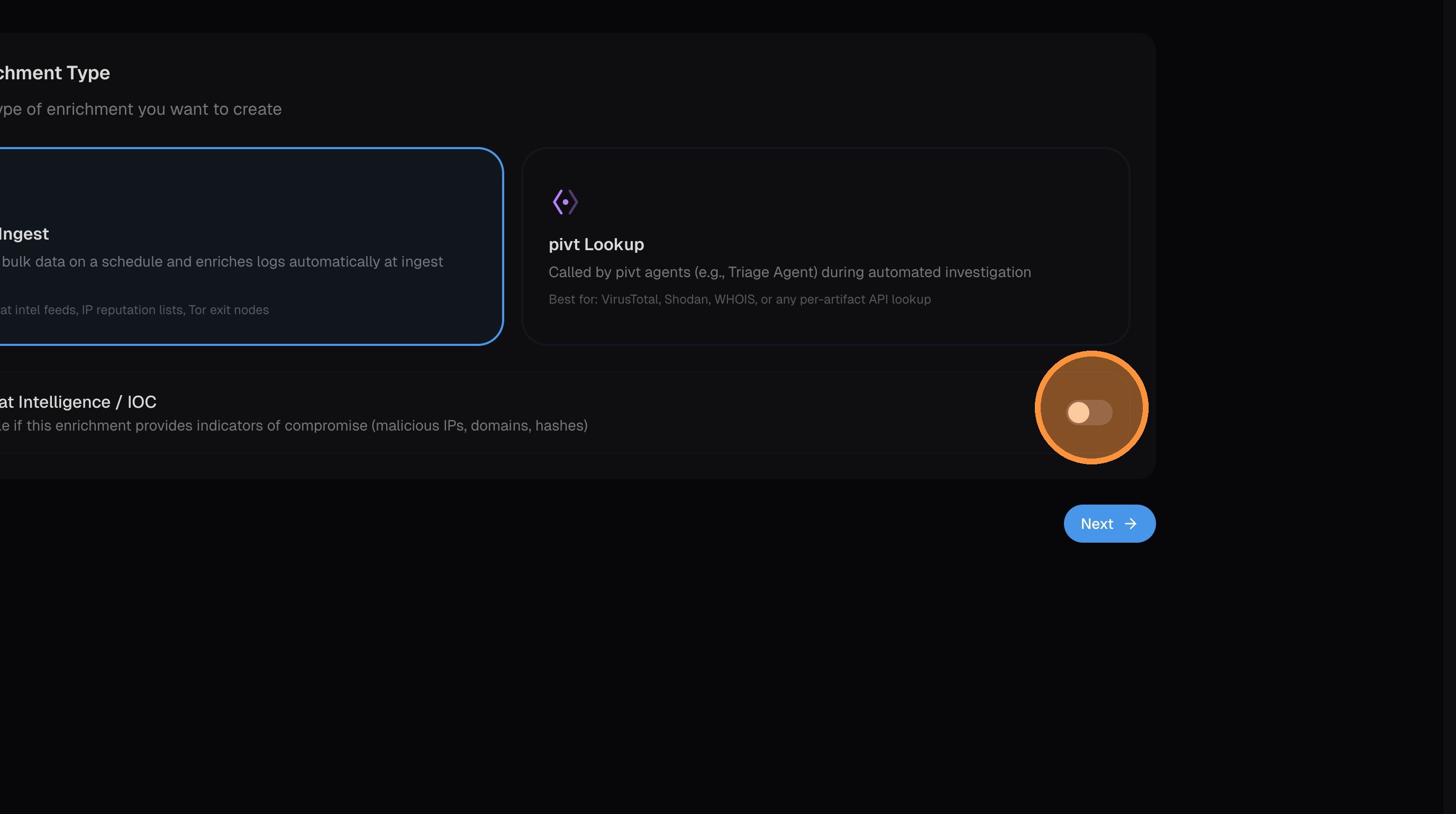

Select the enrichment type. If the data is threat intelligence or IOC-related (IP blocklists, malware hashes, etc.), enable the Threat Intel / IOC toggle — this stores records with IOC flags and populates dedicated IOC columns in your logs.

Click Next.

Name and describe the enrichment

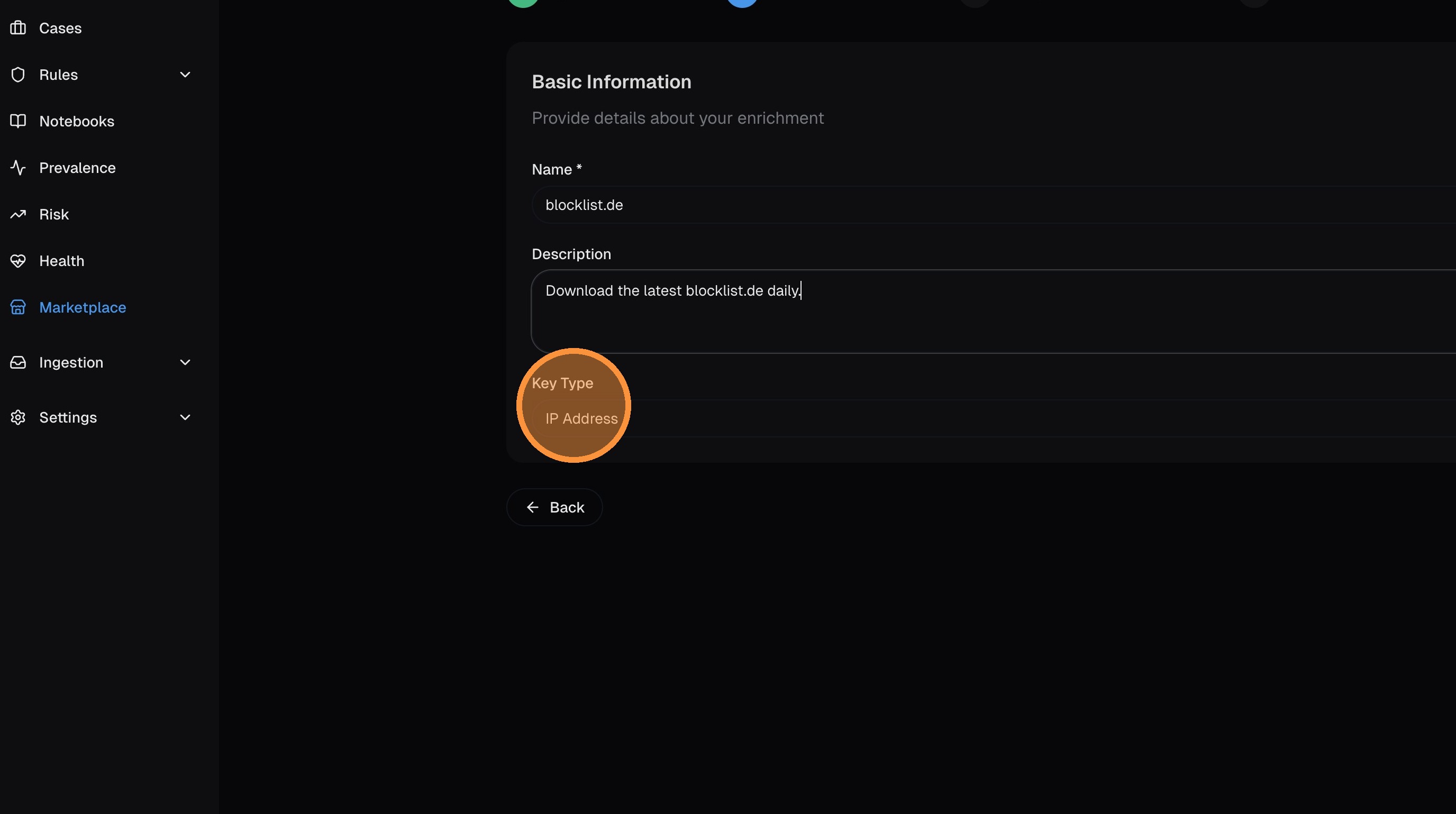

Enter a name and description for your enrichment. Choose the key type — this determines what field the enrichment matches against (IP address, domain, hash, URL, etc.):

Click Next.

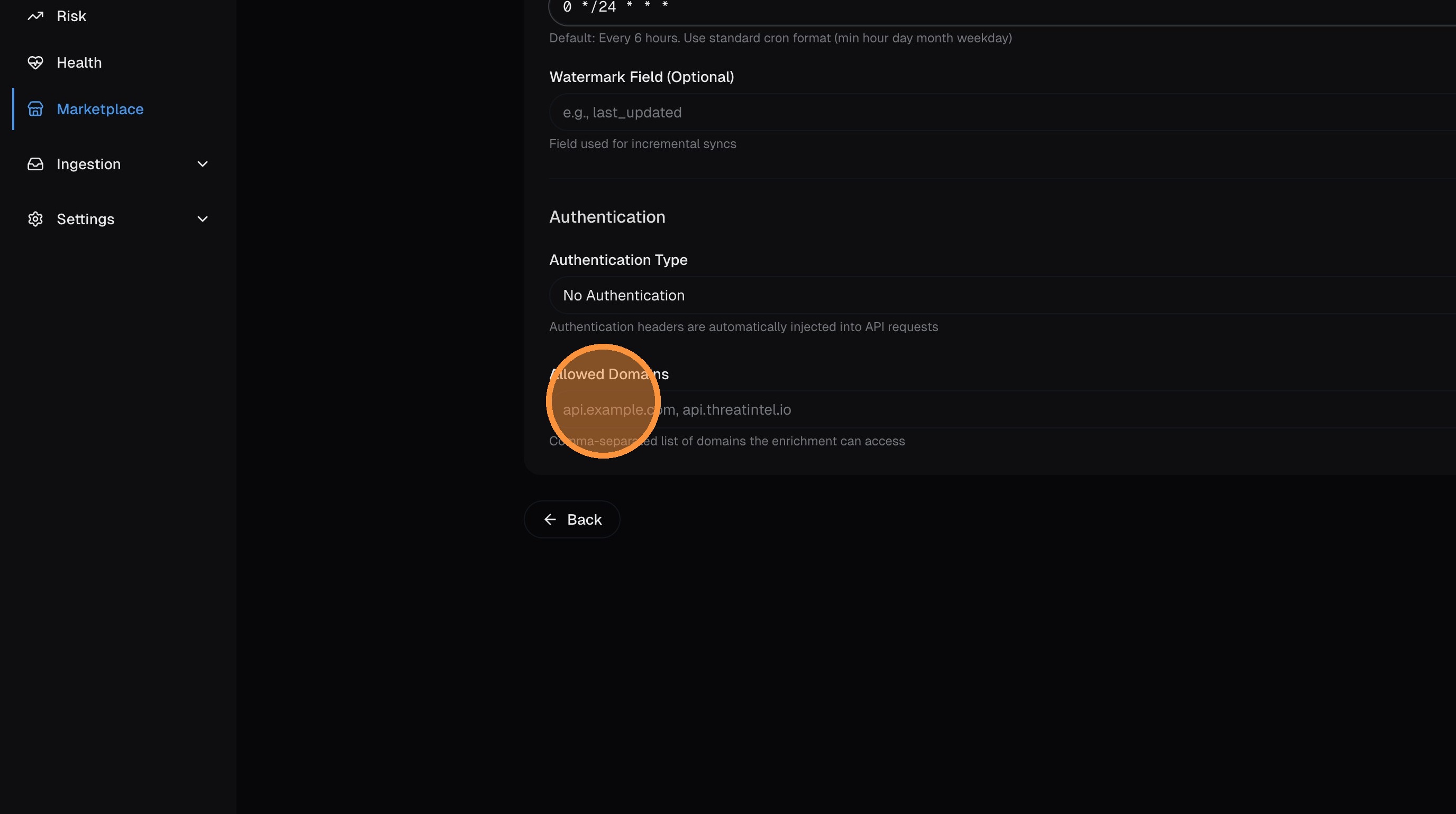

Configure schedule and allowed domains

Set the refresh schedule using a cron expression — this controls how often nano fetches updated data from the source.

Enter the allowed domains that the enrichment code is permitted to contact. The code runs in a sandboxed container that blocks all network access except to domains you explicitly allow.

Click Next.

Generate the code with pivt AI

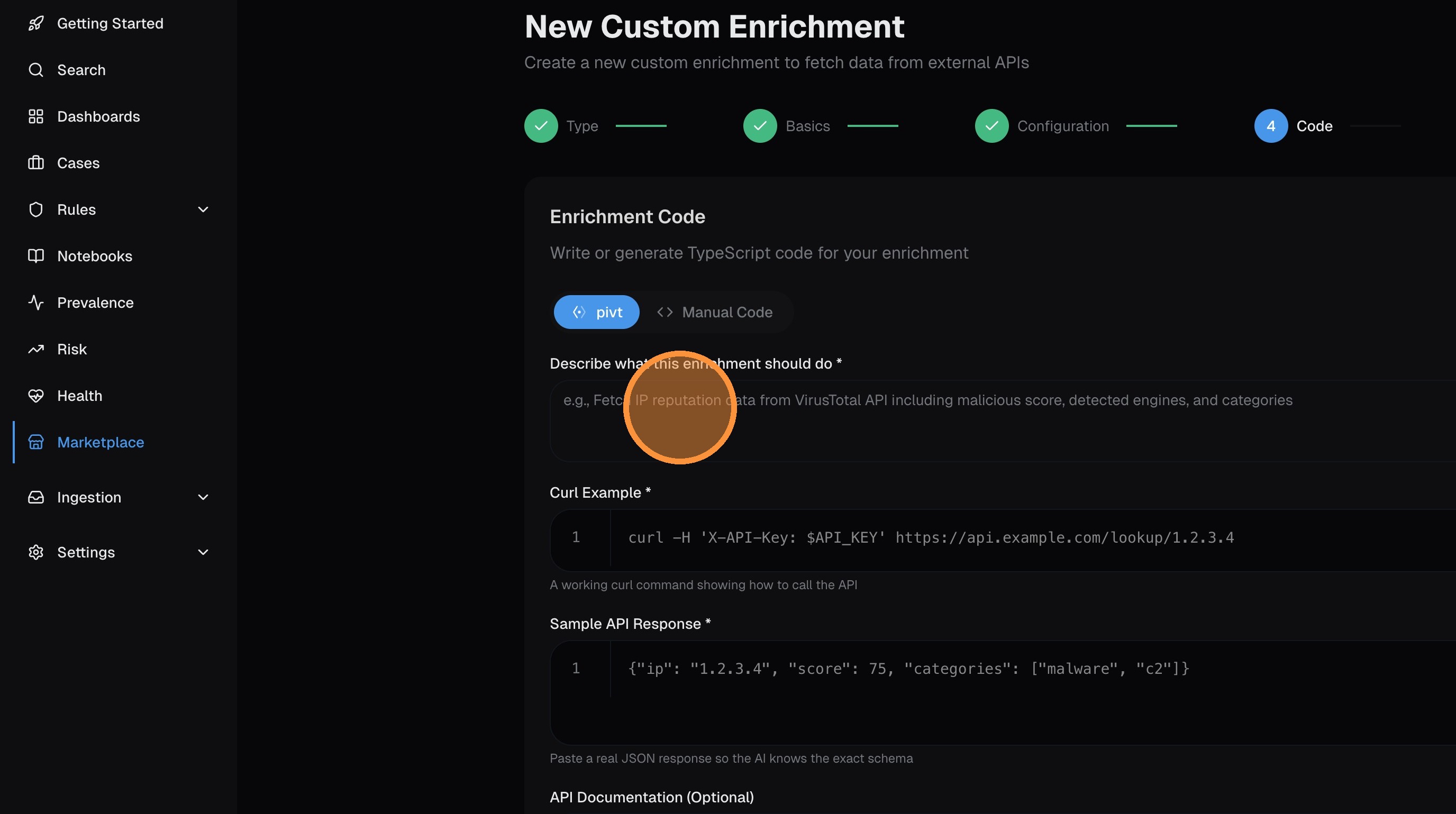

Choose between writing TypeScript manually or having pivt AI generate the code for you. For most enrichments, AI generation is the fastest path.

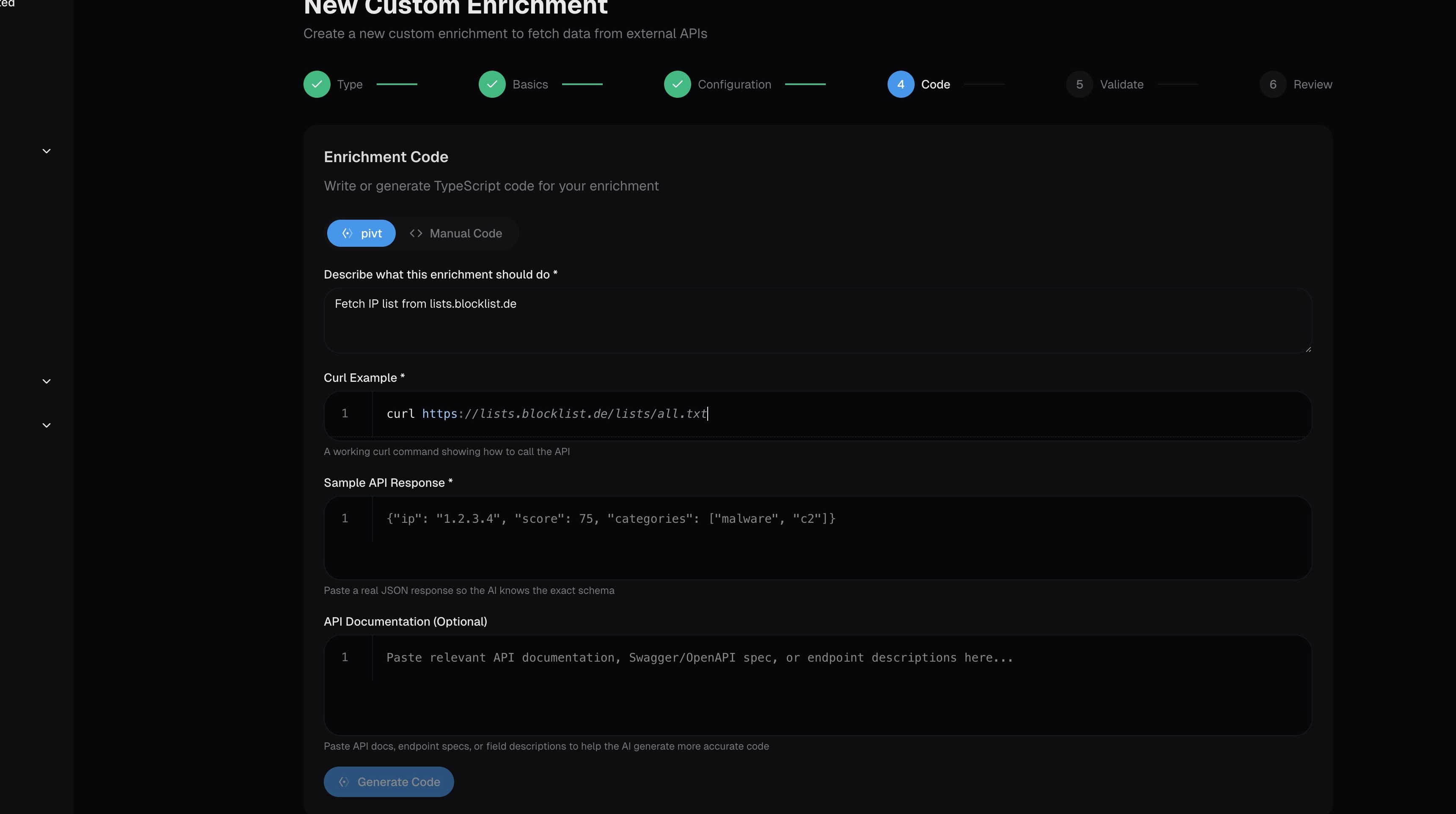

To use AI generation, provide as much context as possible:

1. Description — what the enrichment does and what data it fetches
2. Curl example — a working curl command showing how to call the API
3. Sample API response — paste actual response data so the AI understands the format

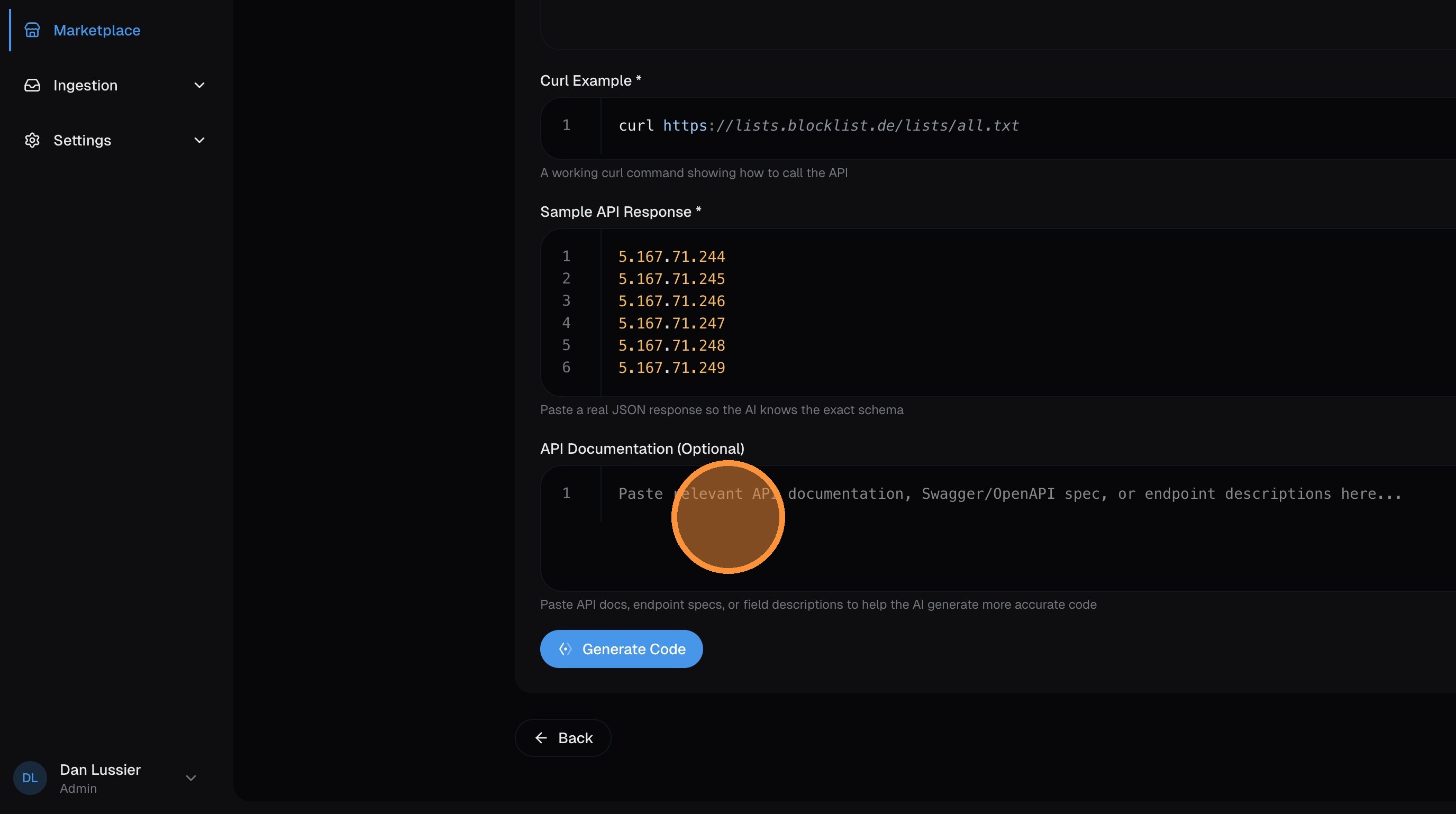

4. API documentation — any additional docs, swagger specs, or field descriptions

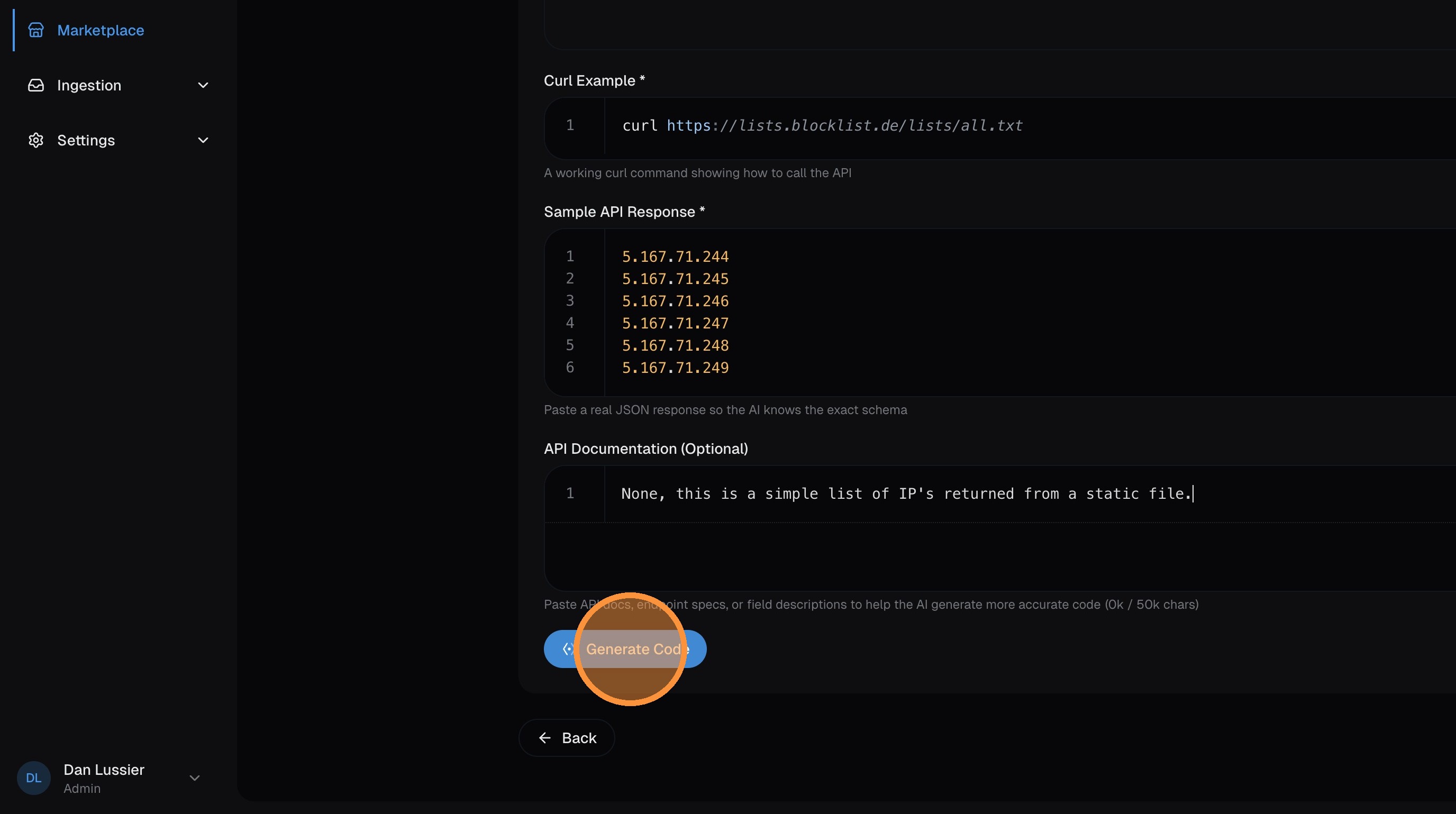

Click Generate Code — pivt analyzes your inputs and writes TypeScript that fetches the data, transforms it, and outputs records in the required format.

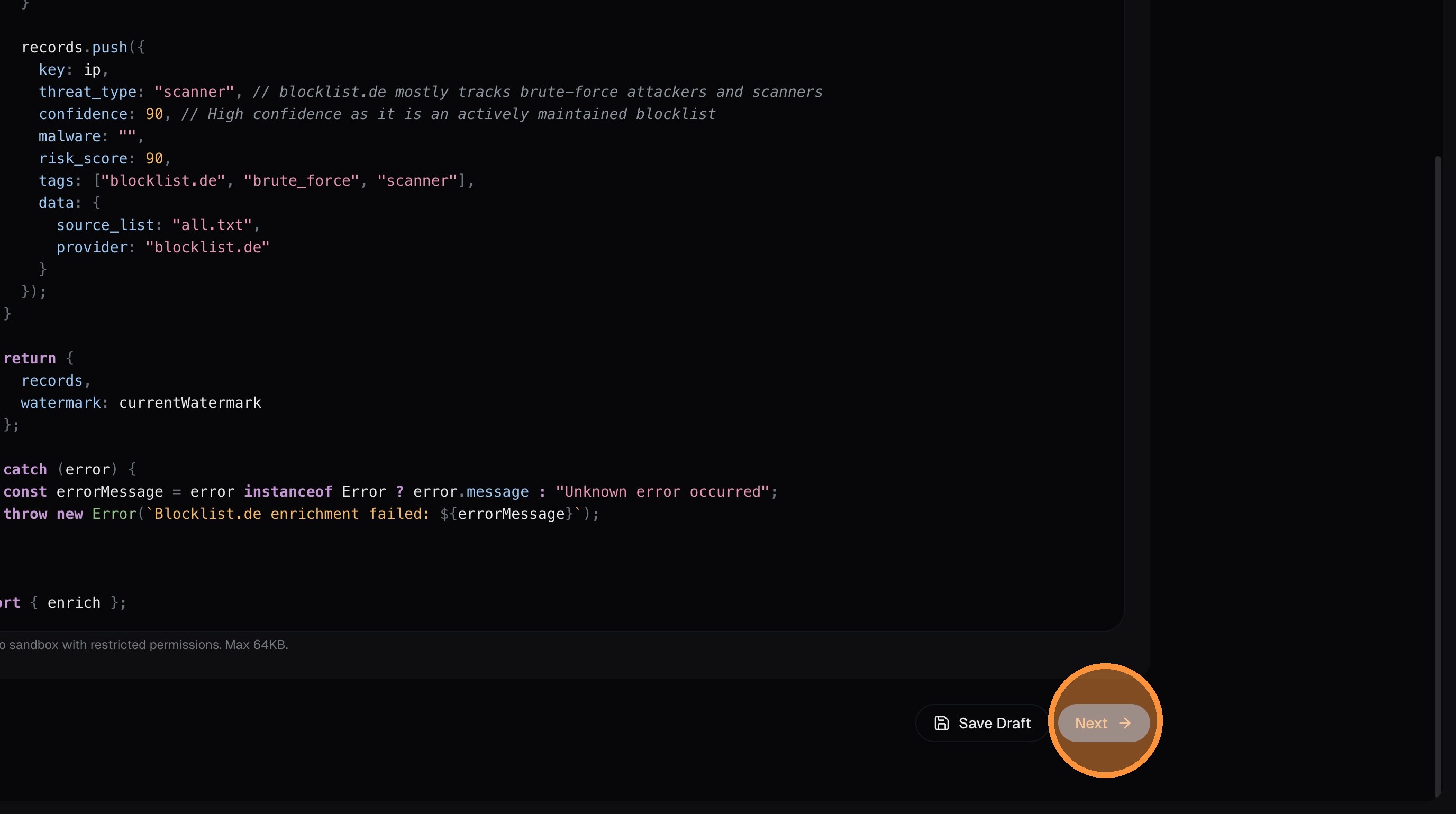

Review the generated code and click Next:

Validate

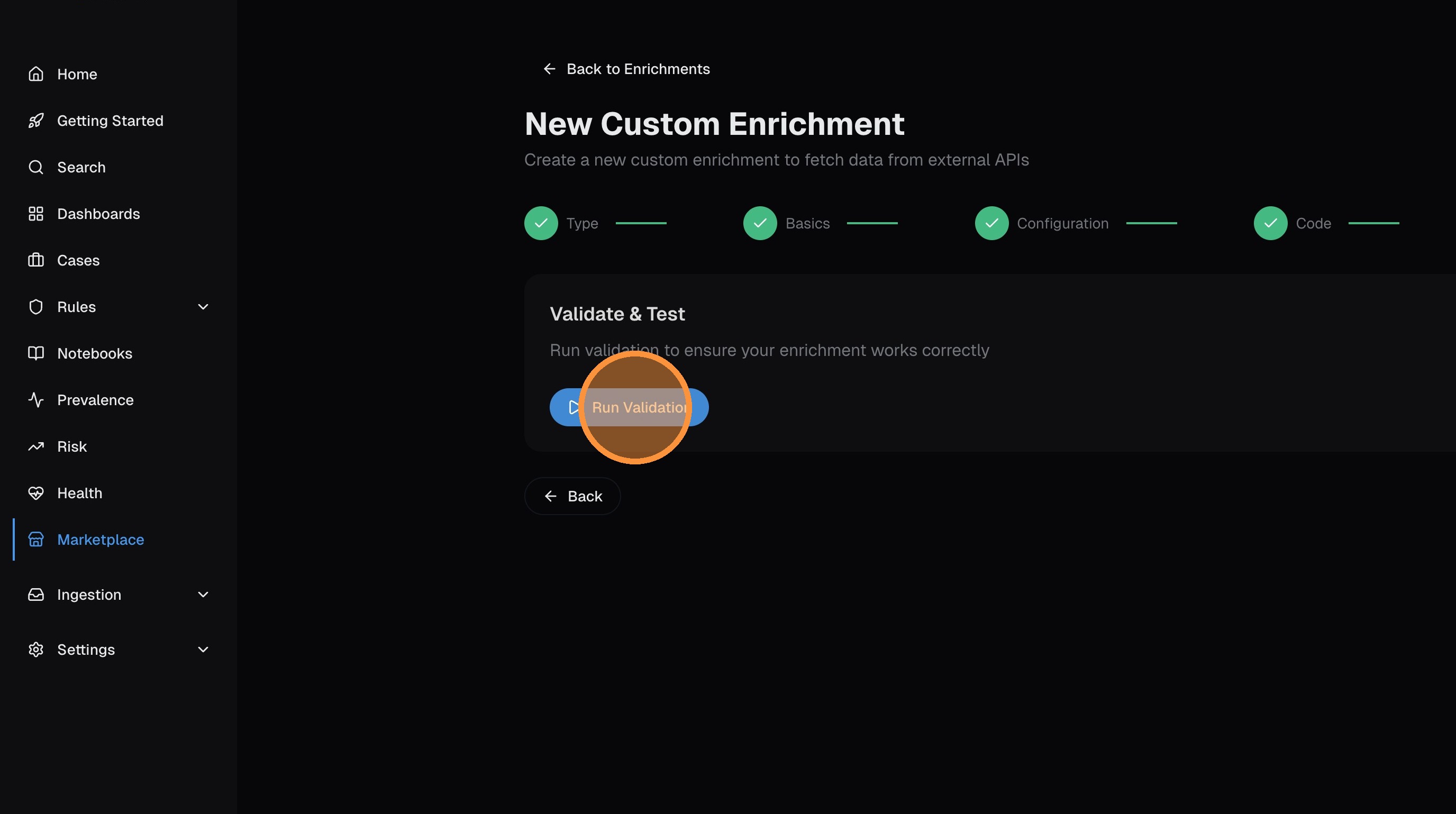

Click Run Validation — this executes the code in the sandbox against the real API to verify it works and returns valid records:

Once validation passes, click Next.

Deploy and install

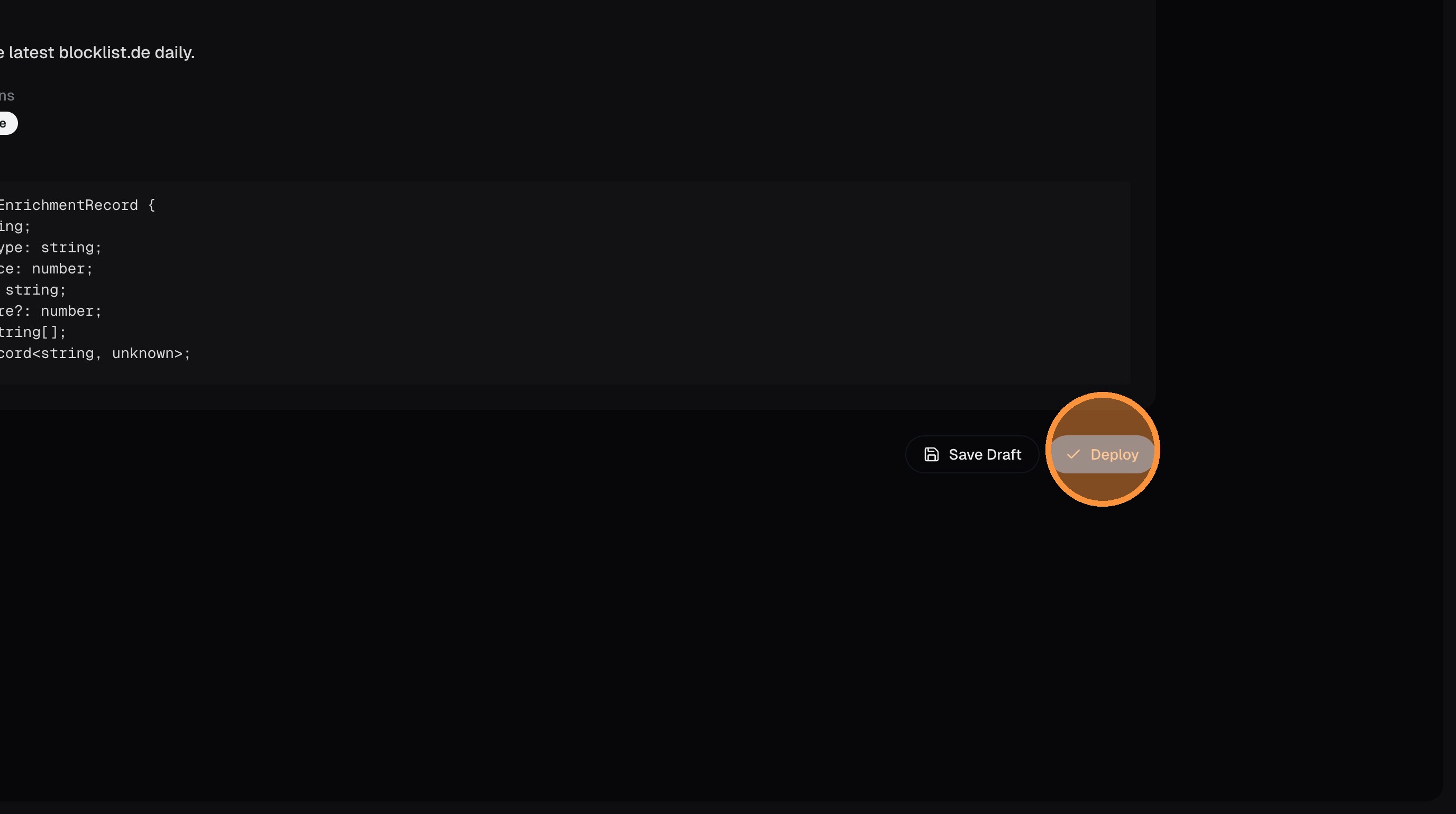

Click Deploy to package the enrichment:

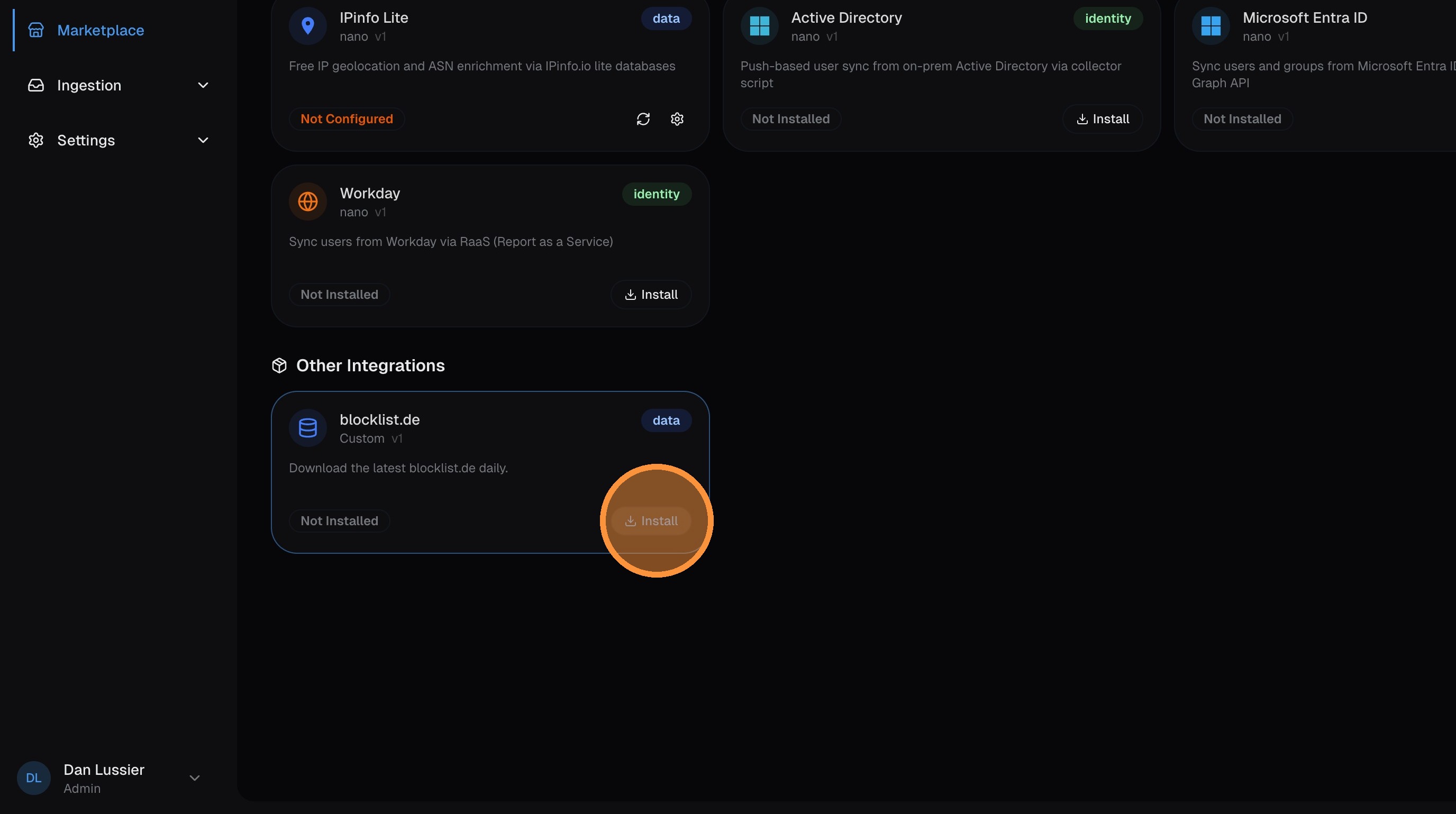

Then click Install to activate it in your environment:

Sync and verify

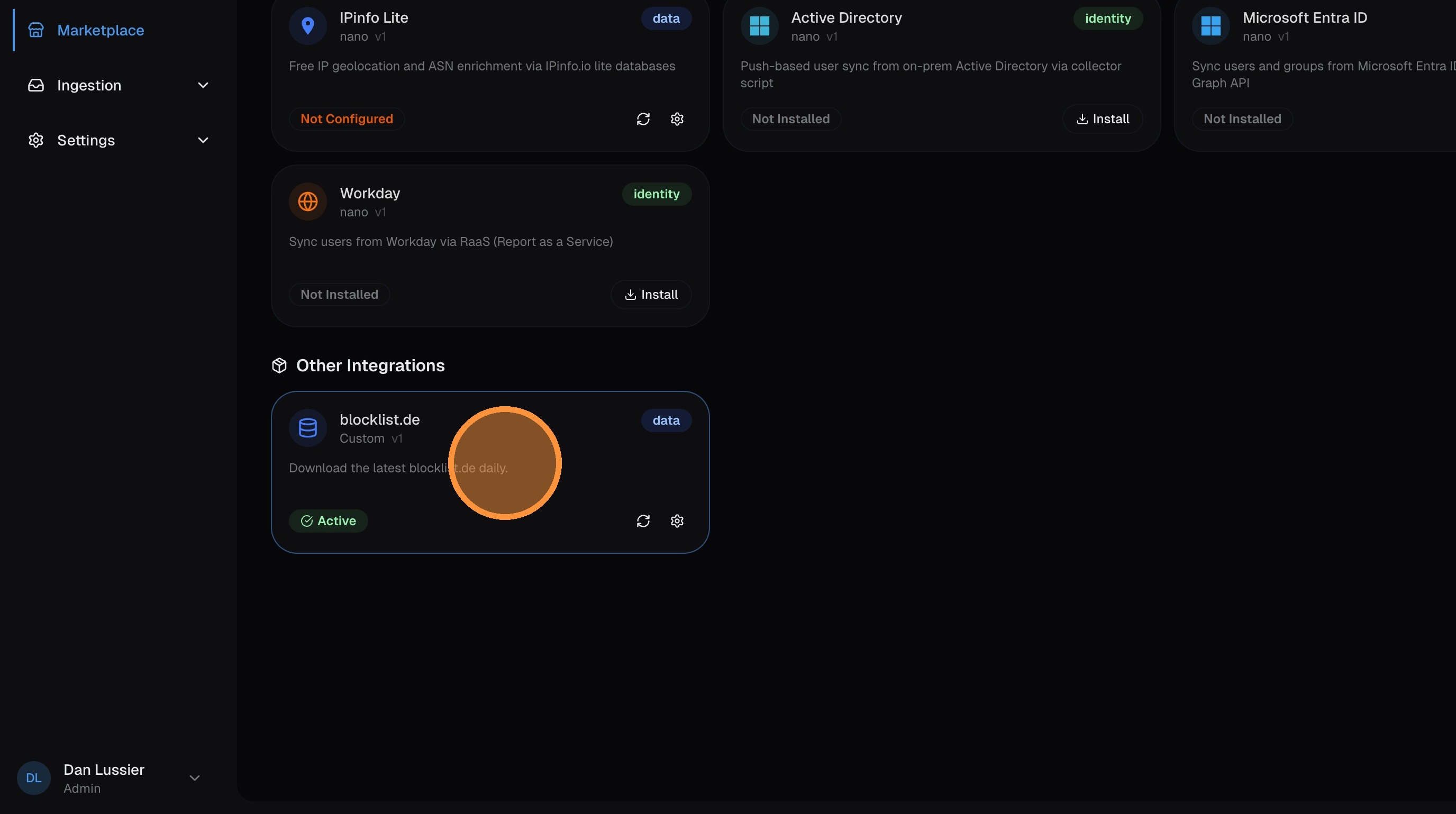

Click on your new enrichment in the Marketplace to open it:

Click Sync Now to run the initial data fetch:

Once the sync completes, the enrichment is active. New logs with matching IPs (or domains, hashes, etc.) will be automatically enriched with the data from your custom source.

Code Structure

Custom enrichments must export an enrich function that returns records in a specific format:

interface EnrichmentRecord {
  key: string;              // The lookup key (IP, domain, hash, etc.)
  risk_score?: number;      // 0-100 risk score
  tags?: string[];          // Tags for categorization
  data?: object;            // Additional metadata

  // IOC-specific fields (required if IOC enrichment)
  threat_type?: string;     // e.g., "malware", "botnet", "anonymizer"
  confidence?: number;      // 0-100 confidence level
  malware?: string;         // Malware family name (if applicable)
}

interface EnrichmentOutput {
  records: EnrichmentRecord[];
  watermark?: string;       // For incremental sync
}

Example: TOR Exit Node Enrichment

export async function enrich(): Promise<EnrichmentOutput> {
  const response = await fetch('https://onionoo.torproject.org/details?flag=Exit');
  const data = await response.json();

  const records: EnrichmentRecord[] = [];

  for (const relay of data.relays) {
    if (!relay.exit_addresses) continue;

    for (const ip of relay.exit_addresses) {
      records.push({
        key: ip,
        // IOC fields at top level
        threat_type: 'anonymizer',
        confidence: 85,
        malware: '',
        risk_score: 75,
        tags: ['tor_exit', 'anonymizer'],
        // Additional metadata in data object
        data: {
          nickname: relay.nickname,
          fingerprint: relay.fingerprint,
          country: relay.country,
          country_name: relay.country_name,
          as_number: relay.as,
          as_name: relay.as_name,
          last_seen: relay.last_seen
        }
      });
    }
  }

  return { records };
}

IOC Enrichments

When creating a threat intelligence enrichment, enable the IOC Toggle. This tells the system to:

1. Store records with is_ioc = 1 flag
2. Populate dedicated IOC columns in the logs table
3. Make data available via the IOC dictionary for ingest-time enrichment

Required IOC Fields (must be at top level, not inside data):

Correct Structure:

{
  "key": "1.2.3.4",
  "threat_type": "anonymizer",
  "confidence": 85,
  "malware": "",
  "tags": ["tor_exit"],
  "data": { "extra": "metadata" }
}

Wrong Structure (IOC fields nested in data):

{
  "key": "1.2.3.4",
  "data": { "threat_type": "anonymizer", "confidence": 85 }
}

Enrichment Data Flow

┌─────────────────┐     ┌──────────────────┐     ┌─────────────────┐
│  Custom Code    │────▶│   ClickHouse     │────▶│  Dictionary     │
│  (Deno Sandbox) │     │   Results Table  │     │  (Auto-refresh) │
└─────────────────┘     └──────────────────┘     └─────────────────┘
                                                         │
                                                         ▼
                                               ┌─────────────────┐
                                               │  Log Ingestion  │
                                               │  (Auto-enrich)  │
                                               └─────────────────┘

1. Code Execution: Your TypeScript runs in a secure Deno sandbox
2. Data Storage: Records are stored in ClickHouse custom_enrichment_results table
3. Dictionary Refresh: ClickHouse dictionaries auto-refresh every 1-5 minutes
4. Log Enrichment: New logs are automatically enriched with matching data

Enriched Log Fields

Custom enrichments add these fields to logs:

Non-IOC Enrichments:

• custom_src_ip_tags / custom_dest_ip_tags — Tags for IP addresses
• custom_src_ip_risk / custom_dest_ip_risk — Risk scores
• custom_domain_tags / custom_domain_risk — Domain enrichment
• custom_hash_tags / custom_hash_risk — File/process hash enrichment
• custom_url_tags / custom_url_risk — URL enrichment

IOC Enrichments:

• custom_ioc_src_ip_threat_type / custom_ioc_dest_ip_threat_type
• custom_ioc_src_ip_confidence / custom_ioc_dest_ip_confidence
• custom_ioc_src_ip_malware / custom_ioc_dest_ip_malware
• custom_ioc_domain_threat_type / custom_ioc_domain_confidence
• custom_ioc_hash_threat_type / custom_ioc_hash_confidence

See Field Reference for the complete custom enrichment field list.

Using Custom Enrichment Data in Queries

Find TOR Exit Node Traffic:

custom_ioc_src_ip_threat_type = 'anonymizer' OR custom_ioc_dest_ip_threat_type = 'anonymizer'

High Risk IPs:

custom_src_ip_risk >= 70 OR custom_dest_ip_risk >= 70

Tagged Traffic:

has(custom_src_ip_tags, 'tor_exit')

Sandbox Security

Custom enrichment code runs in a secure Deno sandbox with:

• Network Restrictions: Only allowed domains can be accessed
• No File System Access: Cannot read/write local files
• Memory Limits: Prevents resource exhaustion
• Execution Timeout: 60 second maximum runtime
• No Shell Access: Cannot execute system commands

Configure allowed domains in the enrichment settings to control external API access.

Run History & Monitoring

Each enrichment tracks:

• Run History: Success/failure status, record counts, timestamps
• Last Run Status: Quick visibility into enrichment health
• Error Messages: Detailed errors for failed runs
• Sample Output: Preview of fetched data

Monitor your enrichments:

1. Check the Custom tab for status indicators
2. Review Run History for detailed execution logs
3. Use Manual Run to test changes before scheduling

Scheduling

"Enrich at Ingest" enrichments can be scheduled to run automatically:

Configure the schedule in the enrichment settings after validation passes.

Additional Sources via Custom Enrichments

While nano includes IPInfo Lite, ThreatFox, and TOR Exit Nodes out of the box, you can integrate additional sources using custom enrichments:

• VirusTotal: File hash and URL reputation (requires API key)
• AbuseIPDB: IP reputation and abuse reports
• Shodan: Internet-wide scan data for IP context
• GreyNoise: Internet scanner and noise detection
• URLhaus: Malicious URL database from abuse.ch
• MaxMind GeoIP: Enhanced geolocation data

Limits & Scaling

There is no hard cap on the number of custom enrichments you can create — they're available on all tiers with no count restriction. Here are the per-execution and system-level limits to be aware of:

Per-Execution Limits

System Limits

Scaling Guidance

• 20-50 enrichments — no issues on any tier. Stagger cron schedules so they don't all fire simultaneously.
• 50-100 enrichments — still fine. The 10-concurrent limit means at most 10 run in parallel; the rest queue. Spread schedules across different minutes.
• 100+ enrichments — works but monitor queue depth. If many enrichments share the same cron schedule, some will wait for a sandbox slot.

Best Practices

1. Start with AI generation — let pivt generate initial code, then customize
2. Test thoroughly — use the validation feature before deploying
3. Monitor run history — check for failures and investigate errors
4. Stagger schedules — avoid scheduling many enrichments at the same minute to stay within the 10-concurrent limit
5. Keep code simple — simpler code is easier to debug and maintain
6. Handle errors gracefully — add try/catch blocks for API failures
7. Filter to relevant data — only return records you actually need to keep execution fast and storage lean

Next Steps

• Field Reference — Custom enrichment field reference
• Architecture — How custom enrichment data flows through the system
• Troubleshooting — Debug custom enrichment issues
